ICAR ADI5 TPMS vVARY

ELLISAFE ADI5 is an extension of the ADI4 tire pressure sensor. It inherits all the advantages and characteristics of ADI4. However, with 5 valves, you get an extra valve for spare tires. Changing tires on the road can be carried out and self-matched easily, quickly.

The ELLISAFE ADI5 tire pressure sensor and AD4 have confirmed one thing. That is referring to the sensor is the ICAR. Because ICAR Vietnam Co., Ltd. is always the leading unit in automotive sensors in general, and TPMS tire pressure sensors in particular. Always bring new and highest quality to customers.

Like the ADI4, the mode of operation of the ADI5 is also via radio and USB. Requirements for use are needed for any android DVD player.

Basic information
Code: ELLISAFE ADI5
Product name: ELLISAFE ADI5 USB tire pressure sensor for android devices
Display: Pressure, temperature, tire leakage (perforation) ... on the automobile Android screen
Support floating avatar, beautiful interface
Language: Vietnamese (display and sound alert)
Sensor chip: Infineon SP40 of Germany
Battery: Panasonic Japan
Battery operating time: 5 years
Sensor: 5 valve sensor mounted in the tire
Display connection: USB
Conditions for use: Cars with android DVD players
Allow setting alarm threshold
Other information
Working temperature: -20ºC to 80ºC
Working pressure: 0 to 8 Bar (116 Psi)
Pressure tolerance: ± 0.1 Bar (1.5 Psi)
Temperature measurement error: ± 1 ºC
Capacity: <10 dbm
Carrier frequency: 433.92 MHZ
Valve size: Diameter 20 mm, length 17 mm
Sensor weight: 8 -10 g
Instruction for using ELLISAFE ADI5 tire pressure sensors

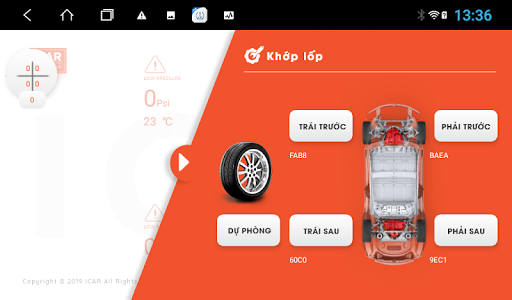

User interface and valve image when mounted on tires

Instructions for downloading and installing management software

Instructions for kneading and turning

Instructions for setting on the application

Read the notification screen

Some important notes
